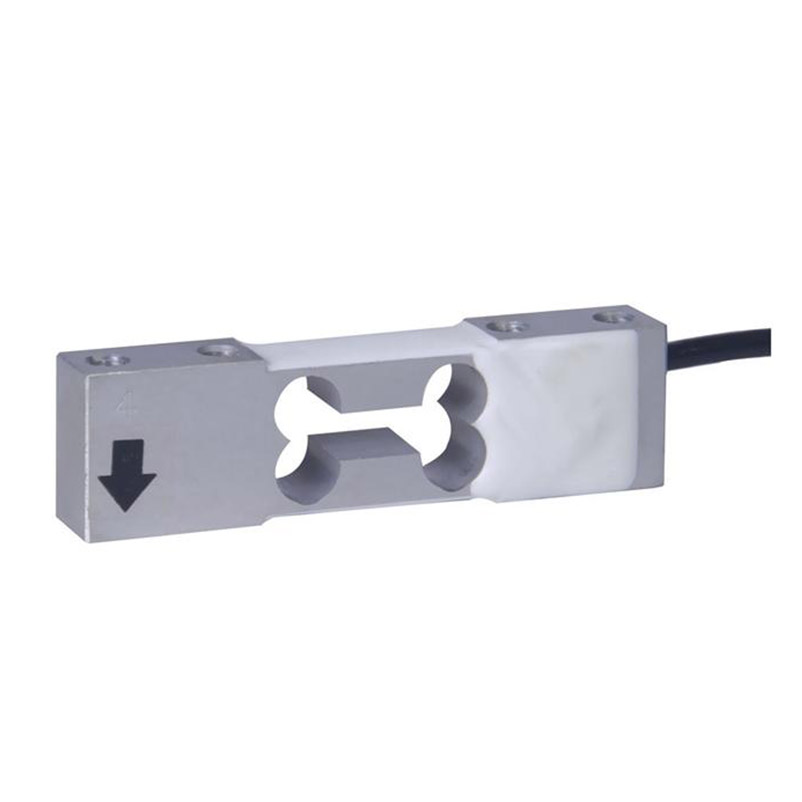

LCT LAC-A2/ Single point/ parallel beam load cell/ Aluminum/for counting scale

Description

Model: LAC-A2

Brand: LCT

Capacity: 1.5,2,3,6(kg)

Usage: Used for electronic balance,counting scales,retail scales,jewellery scales,kitchen scales

Dimension: 80*22*12mm

价格:
¥60
分享

相关产品




Features

  • parellel bending beam
  • capacity:1.5kg,...,6kg
  • accuracy:0.03%R.O.
  • Micro struture
  • recommended platform size:150*150MM
  • aluminum construction with surface anodized
  • environment protection class:IP65


Applications

  • electronic balance
  • counting scales
  • weighing scales
  • retail scales
  • jewellery scales
  • kitchen scales
  • coffee machine
  • packing machine


Description
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAC-A2 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAC-A2 load cells can be used to measure loads range from 1.5kg to 6kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAC-A2 load cells are mainly used for electronic balance,counting scales,weighing scales,retail scales,jewellery scales,kitchen scales,coffee machine and packing machine.

Dimension

Electrical Connection

Technical Data
