Features

• parellel bending beam
• capacity:60kg,...,3000kg
• accuracy:0.02%R.O.
• option:OIML C3 and 0.015%R.O.
• recommended platform size:800*800MM
• aluminum construction with surface anodized
• environment protection class:IP65


Applications

• price computing scales
• counting scales
• weighing scales
• retail scales
• bench scales
• platform scales


Description
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.

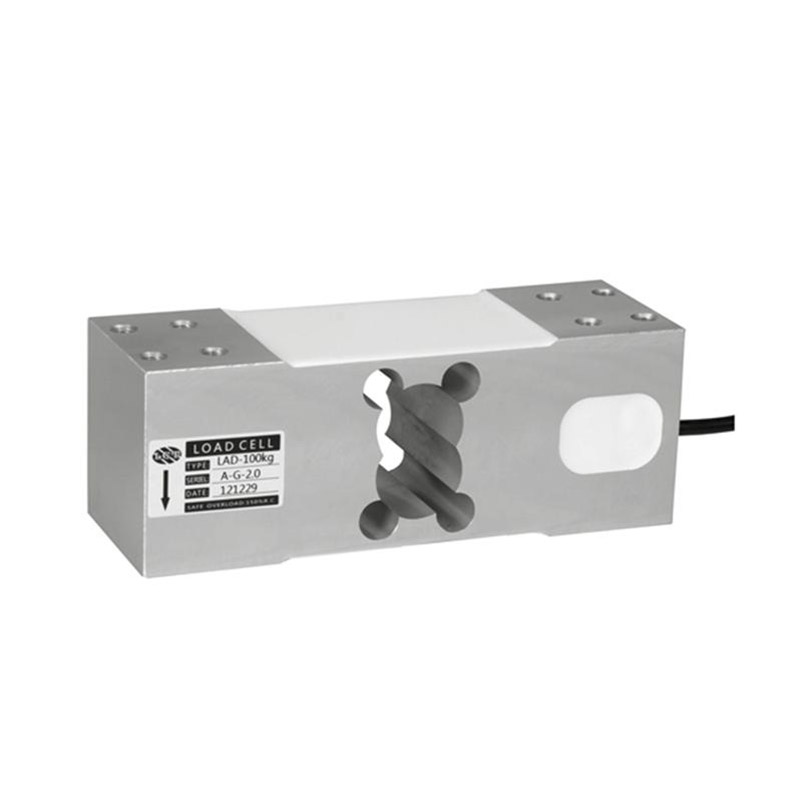

Model LAD-A load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAD-A load cells can be used to measure loads range from 60kg to 3000kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAD-A load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales and platform scales.

Dimension

Electrical Connection

Technical Data
