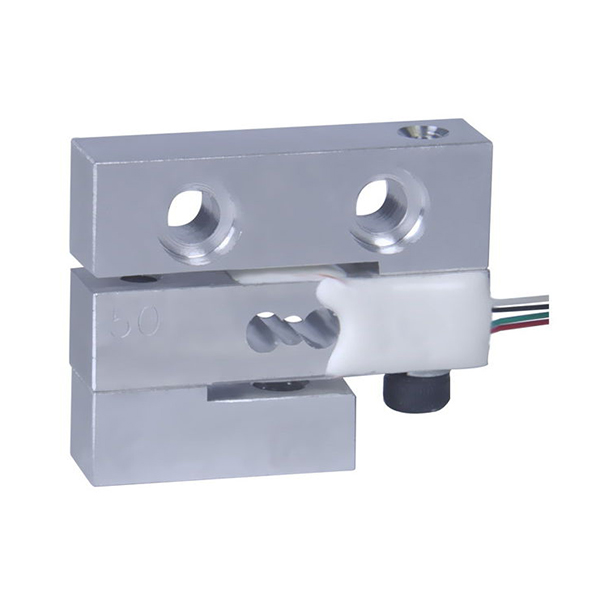

LCT LAS-AX/ Tension/Compression Load cell/ S- beam/ IP65/ Aluminum / for tensile bench

Description

Model: LAS-AX

Brand: LCT

Capacity: 2,5,10,20,30,50 (kg)

Usage: Mainly used for crane scale,hopper scale,tension control,tensile testing etc.

Dimension: 34*42*10mm

价格:
¥45
分享

相关产品




Features

  • S-type load cells
  • capacity:2kg,...,50kg
  • accuracy:0.05% R.O.
  • low cost
  • aluminum construction with surface anodized
  • environment protection class:IP65


Applications

  • crane scales
  • hopper scales
  • tensile testing
  • test benches
  • machine testing


Description
LCT S-type Load Cells have  been designed for measuring static and dynamic tensile and compressive forces.
Advantages of LCT S-type Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and you benefit from a new generation of high-precision, S-type load cells. Be it force measurement in machines, test benches and production lines or tests in development: LCT S-type load cells are the reliable and safe choice for precise force measurement - providing compelling benefits for you.
Model LAS-AX load cells are designed to this “S-type”and manufactured from high quality aluminum alloy of aviation standard. LAS-AX load cells can be used to measure loads range from 2kg to 50kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output) and 1mV/V output signal.
LAS-AX load cells are mainly used for crane scales,hopper scales,tensile testing,test benches and machine testing.

Dimension

Electrical Connection

Technical Data
