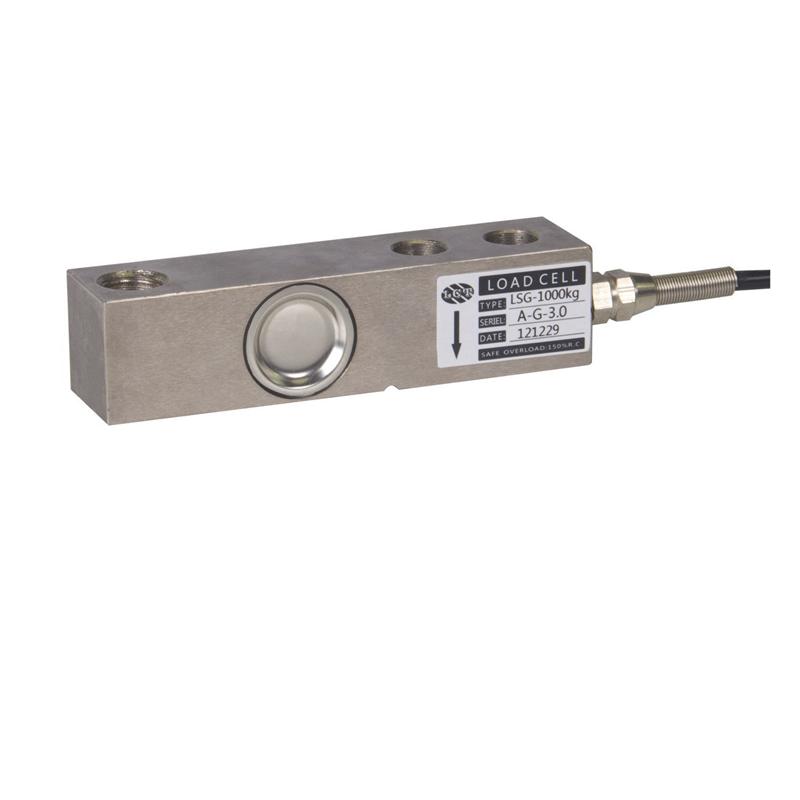

LCT LSG-A / Shear beam/ IP67 / Accuracy 0.03% / alloy steel/ for floor scale
Description
Model: LSG-A
Brand: LCT
Capacity: 500,1000,2000,3000kg
Usage: Platform scale,small platform balance,hopper scale,floor scale,truck scale
Dimension: 32*32*130mm
描述
Description
Model: LSG-A
Brand: LCT
Capacity: 500,1000,2000,3000kg
Usage: Platform scale,small platform balance,hopper scale,floor scale,truck scale
Dimension: 32*32*130mm
Features
- Single-ended shear beam
- capacity:500kg,...,5000kg
- accuracy:0.03%R.O.
- alloy steel construction with nickel plated treatment
- output adjustment for parallel using
- environment protection class:IP67

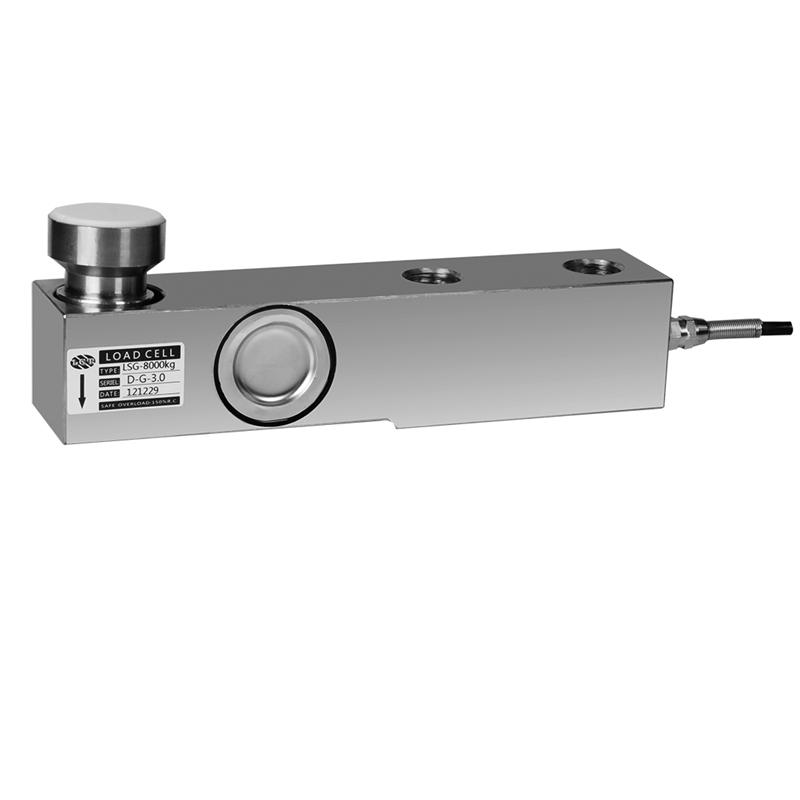

- available accessories(option):load foot
Applications
- tank and hopper scales
- floor scales
- platform scales
Description
Based on LCT advanced metal foil strain gauge technology,single-ended shear beam load cells are made in low profile.Theses load cells are of good side load resistance and relatively insensitive to the point of loading. Advantages of LCT Single-ended shear beam load cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),one unit or 4-matched units to build up a scale.With LCT leading technology in laser welding,shear beam load cells can be made to a higher protection grade of IP67.
Model LSG-A load cells are designed to this “Single-ended shear beam” type and manufactured from high quality alloy steel of aviation standard. LSG-A load cells can be used to measure loads range from 500kg to 5000kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output) and 3mV/V output signal.
LSG-A load cells are mainly used for tank and hopper scales weighing systems,platform scales and floor scales.
Electrical Connection
Technical Data
Note
| Rated Capacity | 500, 1000, 2000, 3000 (kg) |
| Accuracy Class | B |
| Rated Output | (2.0-3.0) ± 0.25 %mV/V |
| Zero Balance | ±2%R.O. |
| Input Resistance | 385±10Ω |
| Output Resistance | 350±3Ω |
| Linearlty Error | ±0.03%R.O. |
| Repeatability Error | ±0.03%R.O. |
| Hysteresis Error | ±0.03%R.O. |
| Creep in 30 Min. | ±0.03%R.O. |
| Temp.Effect on Output | ±0.03%R.O./10℃ |
| Temp.Effect on Zero | ±0.05%R.O./10℃ |
| Compensated Temp.Range | -10－+40℃ |
| Excitation,Recommended | 5－12VDC |
| Excitation,Maximum | 18VDC |
| Operating Temp.Range | -20－+60℃ |
| Safe Overload | 150%R.C. |
| Ultimate Overload | 200%R.C. |
| Insulation Resistance | ≥2000MΩ(50VDC) |
| Cable,Length | ø5mm× 3m * |
| Protection Class | IP67 |
Note
- The length of cable can be customized,ordering instructions.
