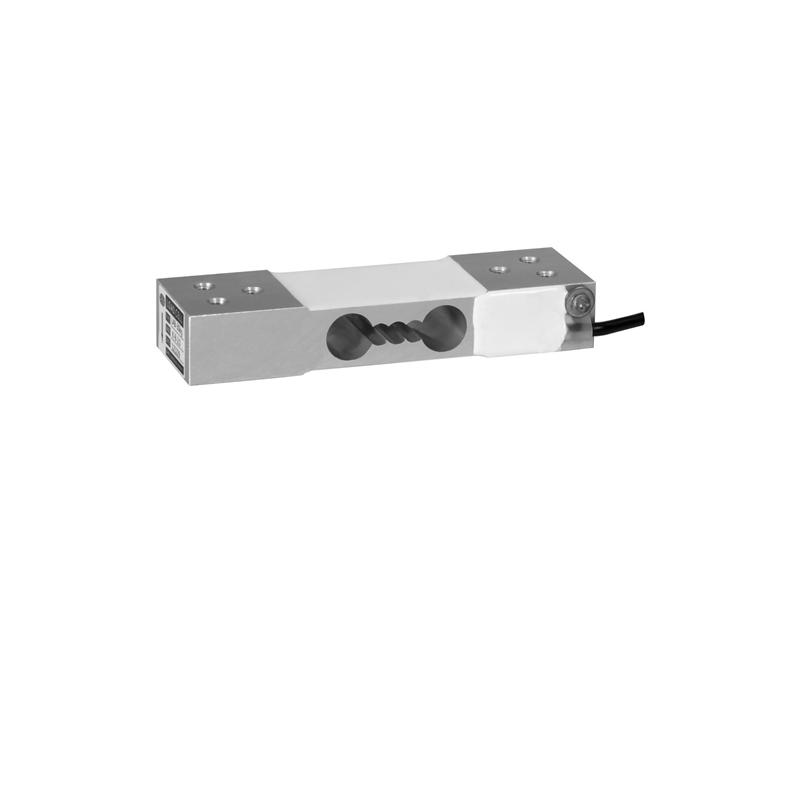

LCT LAB-K/ Bending beam load cell / single-point / parallel beam/ for retail scale

Description

Model: LAB-K

Brand: LCT

Capacity: 20,30,40,50,60,100Kg

Usage: pricing scale,counting scale weighing scale & small platform scale

Dimension: 130*38*22mm

分享

相关产品



Description

Model: LAB-K

Brand: LCT

Capacity: 20,30,40,50,60,100Kg

Usage: pricing scale,counting scale weighing scale & small platform scale

Dimension: 130*38*22mm





Features
  • parellel bending beam
  • capacity:20kg,...,100kg
  • accuracy:0.02%R.O.
  • recommended platform size:250*350MM
  • aluminum construction with surface anodized
  • environment protection class:IP65

Applications
  • price computing scales
  • counting scales
  • weighing scales
  • retail scales
  • bench scales

Description
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAB-K load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAB-K load cells can be used to measure loads range from 20kg to 100kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAB-K load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and bench scale.

Dimension
Electrical Connection
Technical Data
Rated Capacity 20,30,40, 50, 60, 100 (kg)
Accuracy Class G
Rated Output  2.0±10%mV/V
Zero Balance ±5%R.O.
Input Resistance 405±10Ω
Output Resistance 350±3Ω
Linearlty Error ±0.015%R.O.
Repeatability Error ±0.01%R.O.
Hysteresis Error ±0.01%R.O.
Creep in 30 Min. ±0.02%R.O.
Temp.Effect on Output ±0.02%R.O./10℃
Temp.Effect on Zero ±0.02%R.O./10℃
Compensated Temp.Range -10-+40℃
Excitation,Recommended 5-12VDC
Excitation,Maximum  18VDC
Operating Temp.Range -20-+60℃
Safe Overload 150%R.C.
Ultimate Overload 200%R.C.
Insulation Resistance ≥5000MΩ(50VDC)
Cable,Length ø4mm×0.4m *
Protection Class IP65



























Note
  • The length of cable can be customized,ordering instructions.
