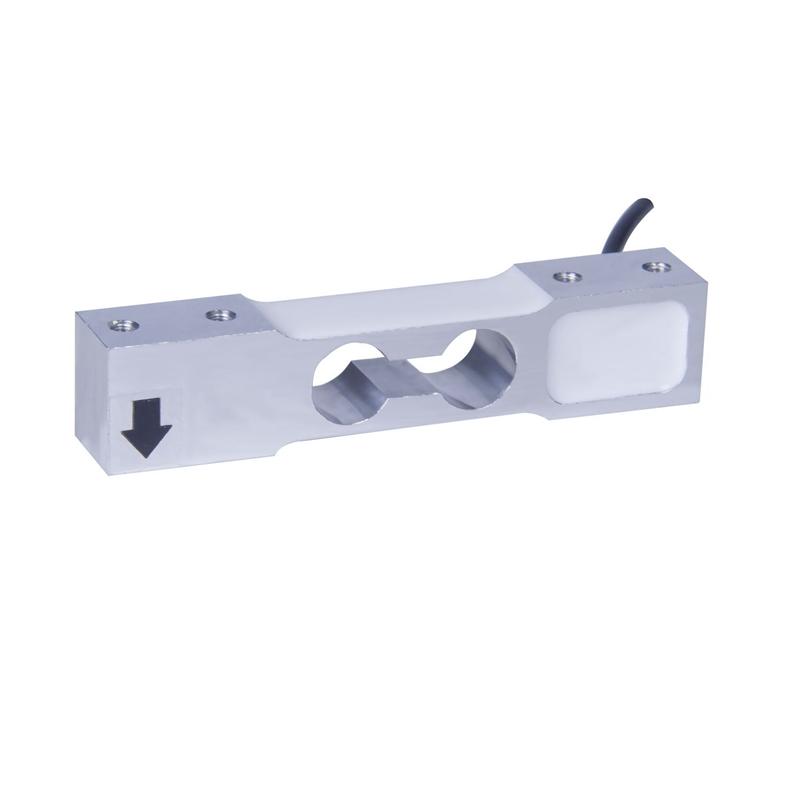

LCT LAP-B1-A/ single-point / cost-effective/ parallel beam/ Aluminum/ for weighing scale

Description

Model: LAP-B1-A

Brand: LCT

Capacity: 3,6,10,15,20,30,40 (kg)

Usage:: Mainly used for price computing scales,counting scales,weighing scales etc.

Dimension: 100*19.5*19.5MM

分享

相关产品



Description

Model: LAP-B1-A

Brand: LCT

Capacity: 3,6,10,15,20,30,40 (kg)

Usage:: Mainly used for price computing scales,counting scales,weighing scales etc.

Dimension: 100*19.5*19.5MM





Features
  • parellel bending beam
  • capacity:6kg,...,40kg
  • accuracy:0.03%R.O.
  • 350Ω input resistance can be provide
  • recommended platform size:200*200MM
  • aluminum construction with surface anodized
  • environment protection class:IP65

Applications
  • price computing scales
  • counting scales
  • weighing scales
  • retail scales
  • packing machinery
Description
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAP-B1-A load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAP-B1-A load cells can be used to measure loads range from 3kg to 40kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAP-B1-A load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and packing machinerys.

Dimension
Electrical Connection
Rated Capacity 6, 10, 15, 20, 30,40 (kg)
Accuracy Class T
Rated Output  2.0±10%mV/V
Zero Balance ±5%R.O.
Input Resistance 1130±20Ω
Output Resistance 1000±10Ω
Linearlty Error ±0.03%R.O.
Repeatability Error ±0.02%R.O.
Hysteresis Error ±0.02%R.O.
Creep in 30 Min. ±0.05%R.O.
Temp.Effect on Output ±0.05%R.O./10℃
Temp.Effect on Zero ±2%R.O./10℃
Compensated Temp.Range 0-+40℃
Excitation,Recommended 5-12VDC
Excitation,Maximum  18VDC
Operating Temp.Range -10-+40℃
Safe Overload 150%R.C.
Ultimate Overload 200%R.C.
Insulation Resistance ≥2000MΩ(50VDC)
Cable,Length ø4mm×0.4m *
Protection Class IP65
